GPS Trackers
AVT110T
CE RED (TIMCO)
AVT110T — CE RED Certificate (TIMCO)
EU-Type Examination E1177-244680 — TIMCO Engineering
EU-Type Examination CE certificate (RED, Annex III Module B) for AVT110T issued by TIMCO Engineering. Certificate E1177-244680 covers multiple GNSS tracker models; this page applies to AVT110T.
Certificate overview
This certificate confirms that the radio equipment meets the essential requirements of Article 3.1(a), 3.1(b), and 3.2 of Directive 2014/53/EU (RED), assessed through EU-Type Examination under Annex III Module B.
Issued by the notified body TIMCO Engineering, Inc. (NB 1177). The device shall be marked CE 1177.
Certificate details
| Field | Value |
|---|---|
| Certificate No. | E1177-244680 |
| Issue date | 31 December 2024 |
| Certificate holder | UAB Assistant Telematics |
| Address | Kaunas, Chemijos str. 27C-62, Lithuania |
| Contact | Adomas Nenartovicius — info@iot-at.com |
| Regulation | Radio Equipment Directive (RED) 2014/53/EU, Annex III Module B |
| Notified body | TIMCO Engineering, Inc. (NB 1177) |
| Product type | GNSS tracker |
| CE mark | CE 1177 |
Covered models
Certificate E1177-244680 includes the following model numbers:
- AVT110
- AVT110T (this model)
- AVT111
- AVT111T
- AVT112
- AVT130
- AVT131
- AVT132
RF specifications
| Category | RF power | Frequency range | Modulation | Antenna |
|---|---|---|---|---|
| Bluetooth LE | 7 dBm (EIRP) | 2402–2480 MHz | GFSK | Chip antenna |
| GSM900 | 33 dBm ±2 dB (conducted) | Tx: 880–915 MHz, Rx: 925–960 MHz | GMSK, 8PSK | PIFA |
| DCS 1800 | 30 dBm ±2 dB (conducted) | Tx: 1710–1785 MHz, Rx: 1805–1880 MHz | GMSK, 8PSK | PIFA |
| LTE | 23 dBm ±2 dB (conducted) | B1, B3, B7, B8, B20, B28 | QPSK, 16QAM, 64QAM | PIFA |
| GNSS | — | 1559–1610 MHz (Rx) | — | Integral |
Applied standards
| Essential requirement | Standards |
|---|---|
| Radio (Article 3.2) | ETSI EN 300 328 V2.2.2; ETSI EN 303 413 V1.2.1; ETSI EN 301 511 V12.5.1; ETSI EN 301 908-1 V15.1.1; ETSI EN 301 908-13 V13.2.1 |
| EMC (Article 3.1b) | ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.3.1; ETSI EN 301 489-19 V2.2.1; ETSI EN 301 489-52 V1.2.1 |
| Health (Article 3.1a) | EN 50665:2017; EN IEC 62311:2020 |
| Safety (Article 3.1a) | EN IEC 62368-1:2020+A11:2020 |
Validity
The certificate is valid until (1) the date of cessation of presumption of conformity of the standards used for testing, or (2) the date of modifications to the approved type that may affect conformity — whichever comes first.

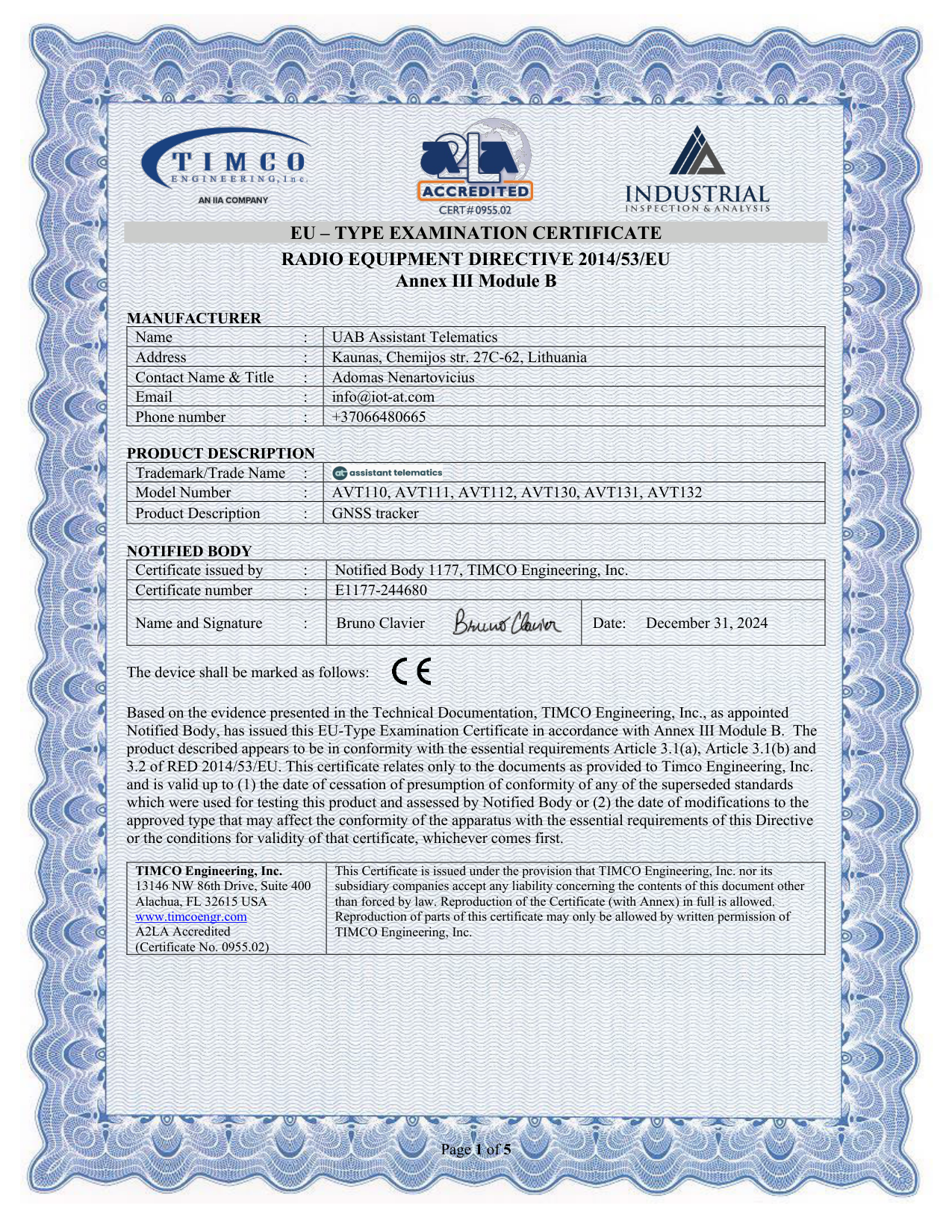

AVT110T — CE RED (TIMCO)
vE1177-244680 · 2024-12-31 · Valid
