Start Configure Device

Assistant Telematics products are configured via a browser. We recommend using Chrome. Open the Configurator with the button below.

In the window that opens, enter the following login details.

Username

iotat

Password

iotat

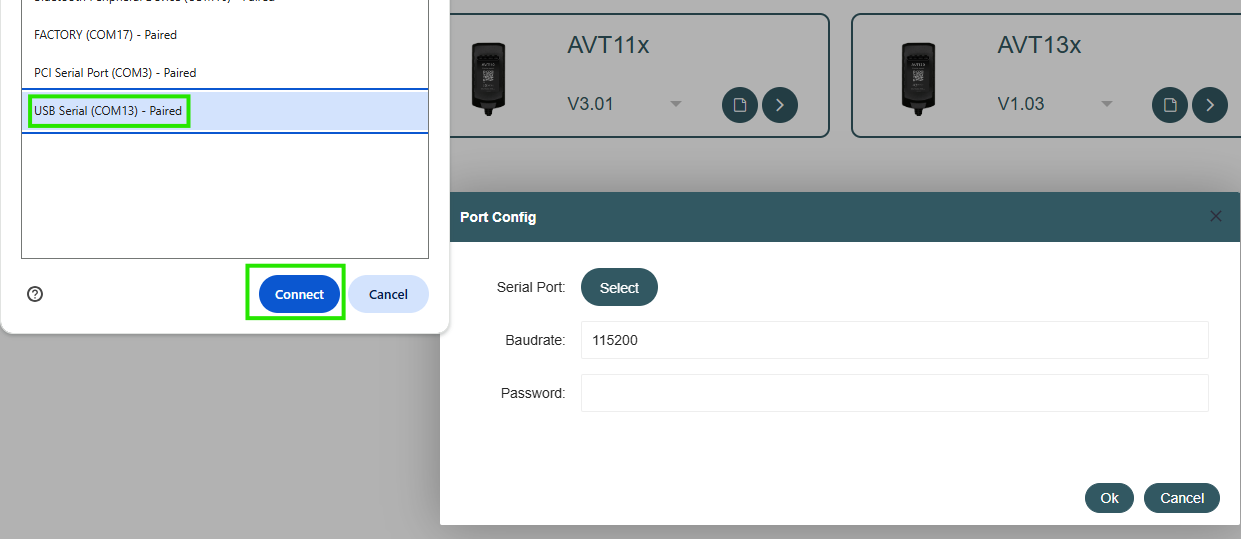

After entering the correct login details, select the port to which you connected the configuration cable — press Select (Serial Port).

Note: To ensure the correct port, check Windows Device Manager — the driver is USB-SERIAL CH340 (COM X).

Assistant Telematics devices use the default password at. Enter at in the Password field and press Ok to configure the unit.

Device password

at

Assistant Telematics products have two MCU chipsets. To update firmware, you mainly need to update the Main MCU firmware (files named AxxVxx with extension *.bin). Products such as AVT11x also include a CAN chipset with a separate CAN firmware. In rare cases you may need to update the modem firmware or boot loader firmware.

The update process can be performed via MT (cable), via a special program designed for batches, remotely via the AT@UPF command, or via the AT-RMS platform.

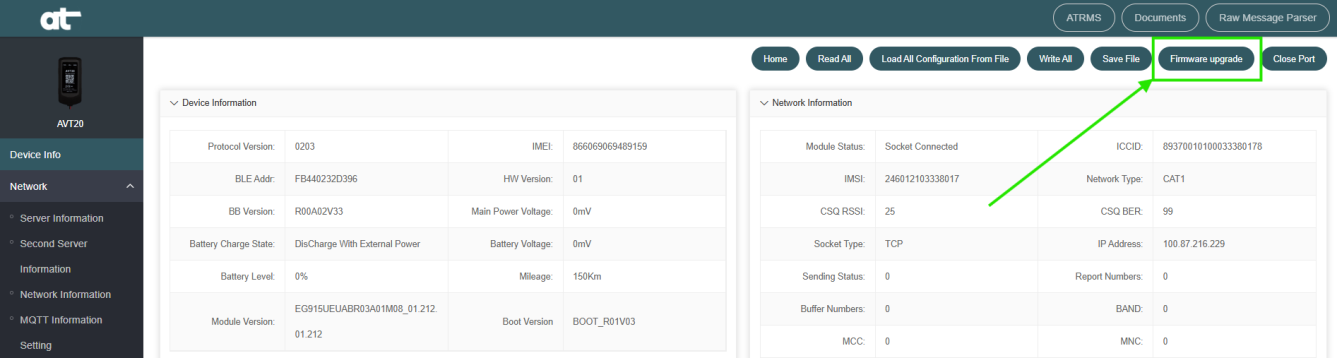

Connect the device to the cable, open the Configurator, log in with credentials iotat / iotat, enter the device password (default at), and press Firmware Upgrade on the right side.

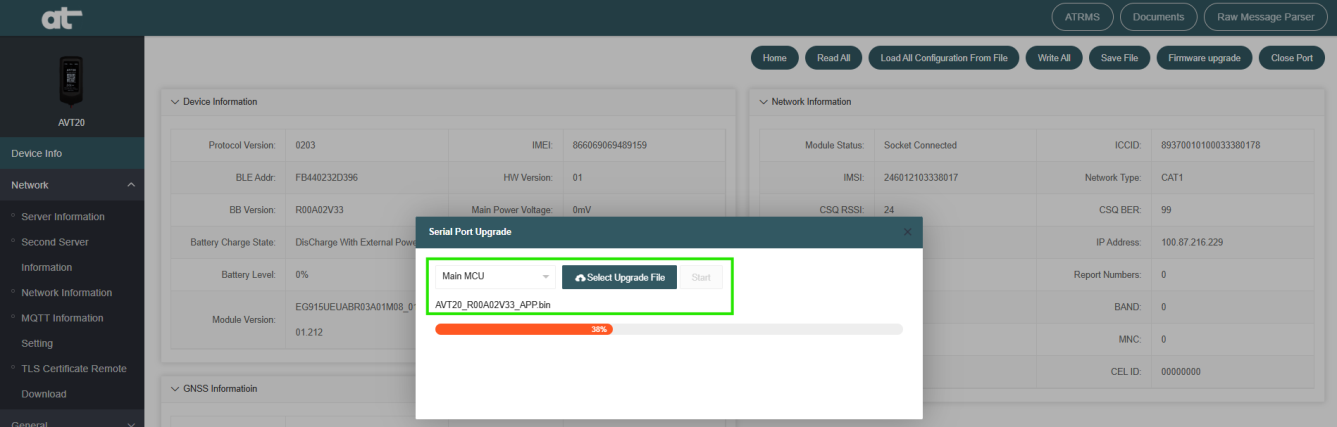

1. Select Main MCU
2. Choose the firmware file *.bin AxxVxx (example: AVT20_R00A02V33_APP.bin)
3. Press Start

Note: All firmware can be updated via cable through MT-Configurator, via a special software tool for batches, remotely using the AT@UPF command with a personal HTTP server, or through the AT-RMS platform.
