AVT80 User Manual

Revision 1.01 — Dec 10, 2025 — Initial release

This manual covers installation, electrical interfaces, and operation of the AVT80 GNSS tracker. Use the structured sections below for quick reference, or open the full PDF for the complete document.

Introduction

The AVT80 is a compact GNSS tracker designed for a wide variety of vehicle tracking applications. It has multiple I/O interfaces that can be used for monitoring or controlling external devices.

Its built-in GNSS receiver has superior sensitivity and fast time to first fix. Seven-band LTE-FDD in Europe and GSM/GPRS 850/900/1800/1900 MHz allow the AVT80's location to be monitored in real time or periodically tracked by a backend server and mobile devices.

The built-in 6-axis accelerometer and gyroscope support driving behaviour monitoring and motion detection.

Specifications

ParameterValue
Dimensions95 mm × 60 mm × 22 mm
NetworkEGPRS: GSM850/GSM900/DCS1800/PCS1900; LTE Cat-1: B1, B3, B5, B7, B8, B20, B28
GNSS (optional)GPS, GLONASS, BDS, GALILEO
BluetoothBLE 5.3
Sensors & interfacesVCC (8–90 V); G-Sensor; 1-Wire (VDD + data); IGN input; 2× OUTPUT; analog/negative trigger multiplexing
Battery3.7 V 150 mAh rechargeable Li-polymer
IP ratingIP67
Operating temperature−20 °C to +60 °C
LED indicatorsPower, NET, GNSS
Debug portUSB Type-C

Interface definition (8 PIN)

AVT80 has an 8 PIN interface connector for power, inputs, outputs, analog input, and 1-Wire:

PINDefinedColorComment
1VINRedExternal DC power input, 8–90 V
2GNDBlackPower and digital ground
3IGNWhiteIgnition input, positive trigger
4ADINOrangeAnalog input and negative trigger input multiplexing
5OUT1BrownDigital output 1, open drain, 150 mA max, with latch circuit
6OUT2GreenDigital output 2, open drain, 150 mA max, with latch circuit
71W DataYellowData for 1-Wire
81W VDDBlueVDD for 1-Wire

Install a SIM card

  • Open the case and ensure the unit is not powered.
  • Slide the holder right to open the SIM card holder.
  • Insert the SIM card with the gold contact area facing down. Align the cut mark.
  • Close the SIM card holder and the case.

Internal backup battery

AVT80 has an internal backup 150 mAh Li-ion battery for continued operation when external power is unavailable.

Power connection

PWR (PIN1) / GND (PIN2) are the power input pins. The input voltage range is 8 V to 90 V. The device is designed for common 12 V / 24 V / 48 V / 64 V / 72 V vehicle systems without external transformers.

Ignition detection

IGN (PIN3) is used for ignition detection. It is strongly recommended to connect this pin to the ignition key “RUN” position.

Electrical characteristics of ignition detection

Logical statusElectrical characteristics
Active8 V to 90 V
InactiveOpen

An alternative is to use a non-permanent power source available only when the vehicle is running (for example, the FM radio power source).

The IGN signal can be configured to start transmitting to the backend server when ignition is on, and enter power saving mode when ignition is off.

Digital outputs

AVT80 has two digital outputs. Each output is open drain type with a maximum drain current of 150 mA and a built-in over-current PTC resettable fuse.

Electrical characteristics of digital outputs

Logical statusElectrical characteristics
Enable< 1.5 V @ 150 mA
DisableOpen drain

Terminal status LED

LEDDevice statusLED status
GNSSGNSS chip is powered offOFF
GNSSNo data or data format errorHigh speed flashing
GNSSSearching GNSS informationMedium speed flashing
GNSSGNSS information acquiredON
CELLSearching networkFast flashing
CELLRegistered on networkSlow flashing
PWRNo external power, battery < 3.5 VOFF
PWRNo external power, battery < 3.7 VSlow flashing
PWRExternal power connected, battery chargingFast flashing
PWRExternal power connected, battery fully chargedON
CELL, GNSS, and PWR LEDs can be configured to turn off after a period of time using the configuration tool.

G-sensor direction

AVT80 has an internal 6-axis accelerometer and gyroscope supporting driving behaviour monitoring, crash detection, and motion detection. Mount the device according to the motion sensor orientation shown in the full manual.

Product parts list

  • AVT80 locator
  • 3M backing sticker
  • Case screws (4 pcs)

AVT80 — User manual

v1.01 · 2025-12-20 · Release

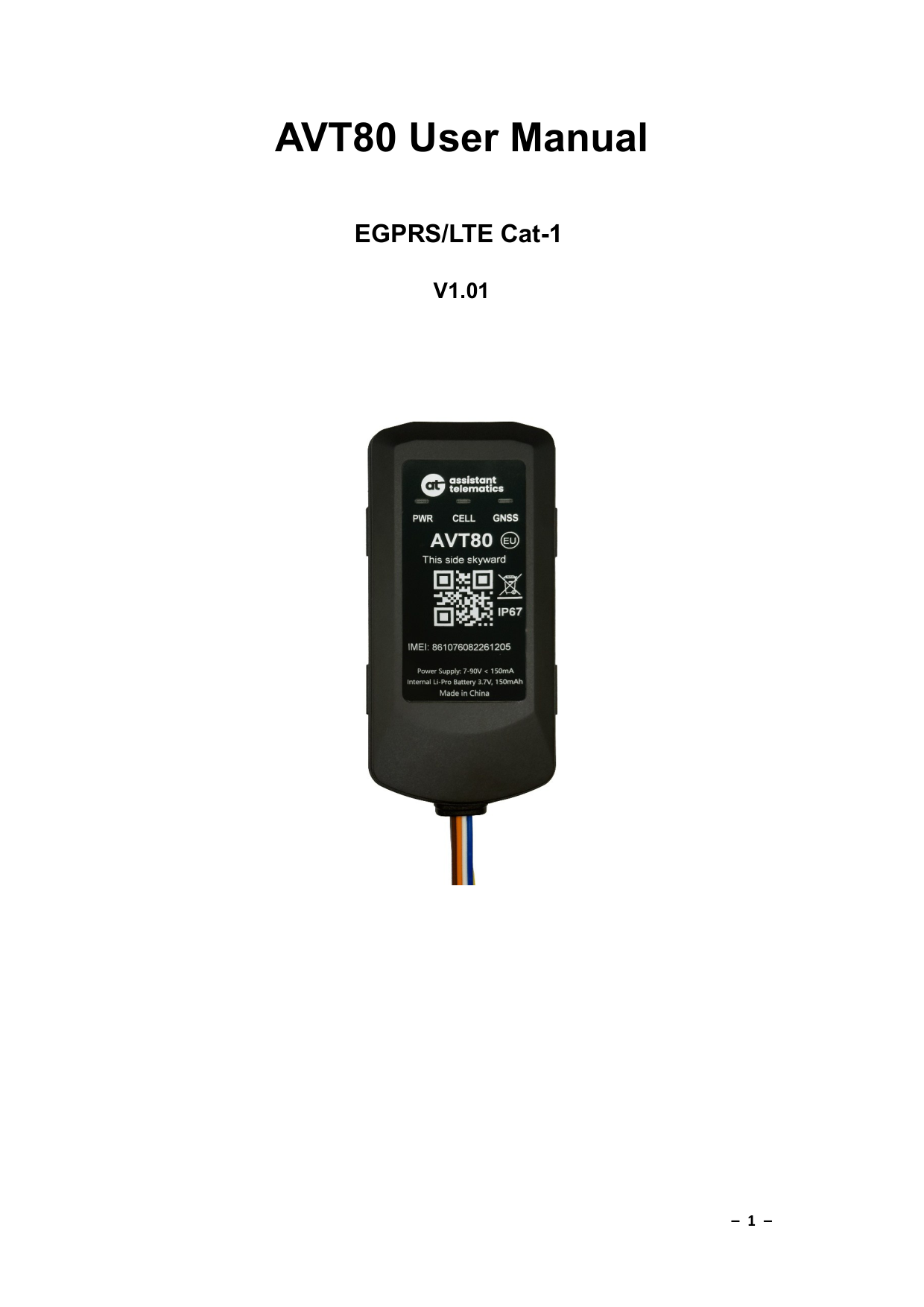

AVT80 — User manual — Page 1 of 11
