AVT110T Datasheet — LTE Cat 1 Advanced Vehicle Tracker
CANbus, live tachograph data, and DDD file download
Technical datasheet for the AVT110T LTE Cat 1 advanced vehicle tracker with CANbus, live tachograph data, and DDD file download. Review key specifications and interfaces below, or open the full PDF.
Key highlights
- LTE Cat 1 with fallback to 2G
- Waterproof IP67
- 1-Wire interface
- CANbus data and DDD file download
- DTC — Diagnostic Trouble Code (light vehicles)
- 3 CAN interfaces (2 CAN + K-line)
- BLE 5.3
- 150 mAh Li-Polymer backup battery
Overview
AVT110T is a waterproof Assistant Telematics device designed for light and heavy machinery, trucks, trailers, and motorcycles. The tracker supports all tachograph models and includes three CAN interfaces (2 CAN + K-line).
It allows DDD file downloads, offers the option to receive live tachograph data regardless of ignition status, and reads DTC codes from light vehicles. The device includes built-in BLE and multiple interfaces, supporting BLE accessories such as fuel sensors, fuel cap sensors, temperature and humidity sensors, angle sensors, and beacons.
Thermograph and TPMS readings are supported via the RS-232 serial port. The device includes 1-Wire support for temperature monitoring and ID authentication.
Applications
- Light vehicles
- Heavy machinery
- Trucks
- Trailers
- Motorcycles
Physical & environment
| Parameter | Specification |
|---|---|
| Dimensions | 55 (L) × 111 (W) × 26 (H) mm |
| Weight | 161 g |
| IP rating | IP67 |
| Operating temperature | −30 °C to +75 °C |
Network
| Parameter | Specification |
|---|---|
| Module | Quectel EG915UEU LTE Cat 1 fallback 2G |
| 4G bands | B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| 2G bands | B2 / B3 / B5 / B8 |
GNSS
| Parameter | Specification |
|---|---|
| Receiver | Unicore C6226 |
| Constellations | GPS, BDS, GLONASS, Galileo, QZSS, SBAS |
| Horizontal accuracy | < 2.0 m |
| Hot start | < 1 s |
| Cold start | < 28 s |
| Tracking sensitivity | −160 dBm |
| Data update rate | 1 Hz |
BLE
| Component | Specification |
|---|---|
| Bluetooth | Goodix GR5526 BLE — Low-power Bluetooth 5.3 |
Power & battery
| Parameter | Specification |
|---|---|
| Input voltage range | 7–32 V |
| 150 mAh — report every 10 min | Approx. 24 hours (1 day) |
| 150 mAh — report every 1 hour | Approx. 50 hours (2 days) |
| 150 mAh — report every 12 hours | Approx. 210 hours (8 days) |
Interfaces & other
| Interface | Details |
|---|---|
| Digital inputs | 2 — 1 ignition input; 1 digital negative / analog input multiplexing |
| Digital output | 1 |
| 1-Wire | 1 |
| RS-232 | 1 |
| CAN | 2 — switchable CAN terminators |
| K-line | 1 |
| USB | Type-C — power and configuration |
| SIM | 3FF, eSIM compatible |
| Memory | 4 MB |
| LED indication | Power, Network, GNSS, CAN |
Certification

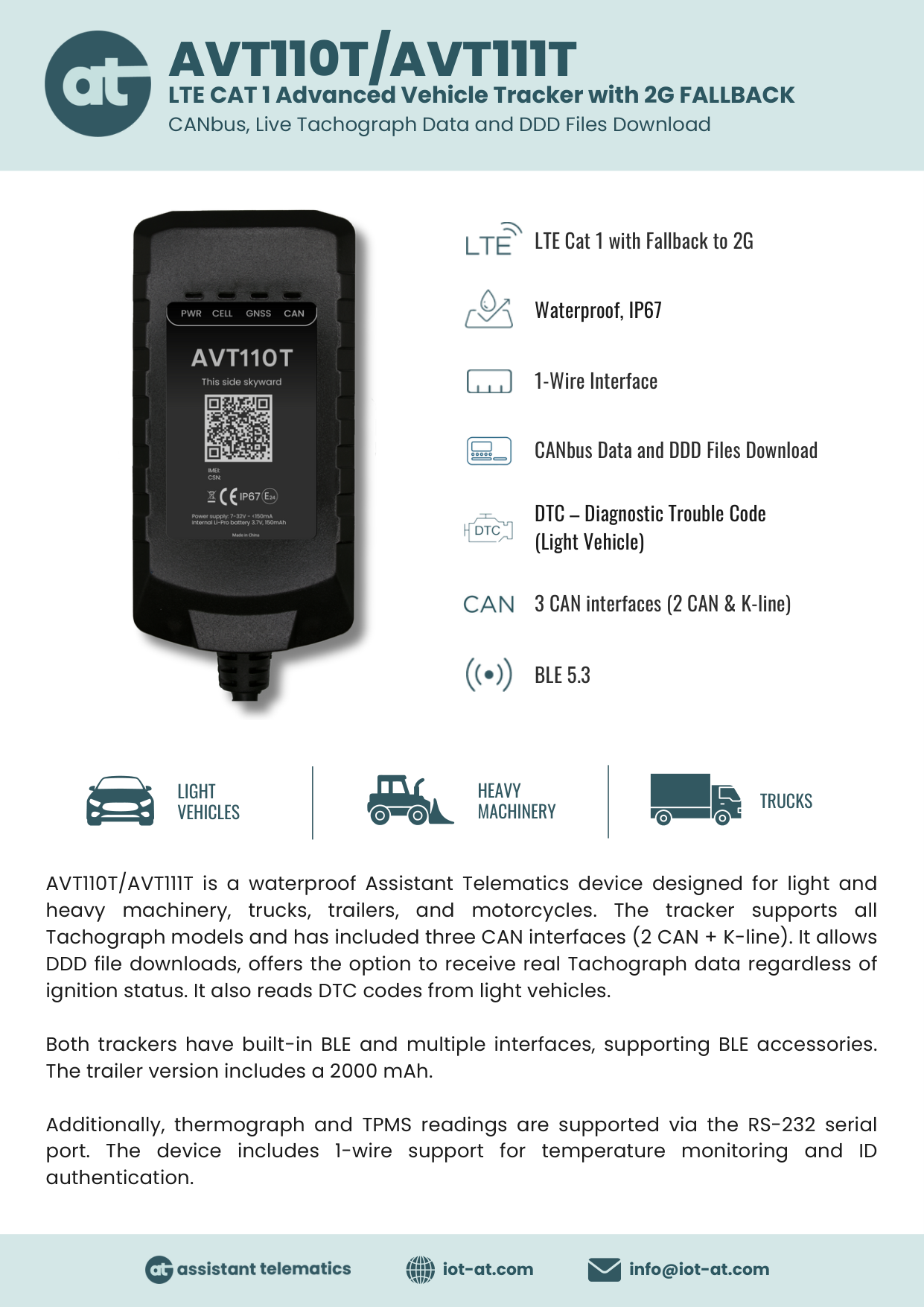

AVT110T — Datasheet
