ABR100 Datasheet — Bluetooth Relay
Compact BLE relay for remote vehicle engine control
Technical datasheet for the ABR100 Bluetooth relay. Review product, BLE, and relay specifications below, or open the full PDF.
Key highlights
- Compact size, easy installation
- IP64
- BLE 5.1 with AES128 encryption
- BLE and remote control
- Up to 150 m open-field range
- 6 A relay switching
Overview
ABR100 is a Bluetooth relay for remotely locking and unlocking a vehicle's engine via secure short-range wireless communication. It is designed for vehicle security, fleet management, and custom automotive applications.
The device operates from 8–32 V DC, uses an ABS plastic enclosure rated IP64, and supports standard and encrypted BLE communication.
Product characteristics
| Parameter | Specification |
|---|---|
| Operating voltage | DC 8–32 V |
| Standby current | < 1.5 mA @ 12 V / < 1 mA @ 24 V |
| Trigger current | 19 mA @ 12 V / 10.6 mA @ 24 V |
| Operating temperature | −40 °C to +85 °C |
| IP rating | IP64 (industrial grade) |
| Shell material | ABS plastic |
| Shell color | Black |
| Dimensions | 49 × 27 × 16 mm |
| Weight | 22 g ± 1 g |
BLE characteristics
| Parameter | Specification |
|---|---|
| BLE version | BLE 5.1 |
| BLE communication encryption | AES128 |
| BLE broadcast frequency | 100 ms |
| BLE transmission range | Up to 150 m (open field) |
Relay characteristics
| Parameter | Specification |
|---|---|
| Maximum load current | 6 A @ 250 VAC / 6 A @ 30 VDC |
| Maximum switch voltage | 400 VAC / 125 VDC |
| Maximum switch current | 6 A |
| Maximum switch power | 1500 VA / 180 W |
Pin interface definition
| Pin | Name | Color | Description |
|---|---|---|---|
| 1 | VDD | Red | Power supply 8–32 V |
| 2 | GND | Black | Ground |
| 3 | RELAY_COM | White | Common |
| 4 | RELAY_NO | Yellow | Normally open |
| 5 | RELAY_NC | Green | Normally closed |

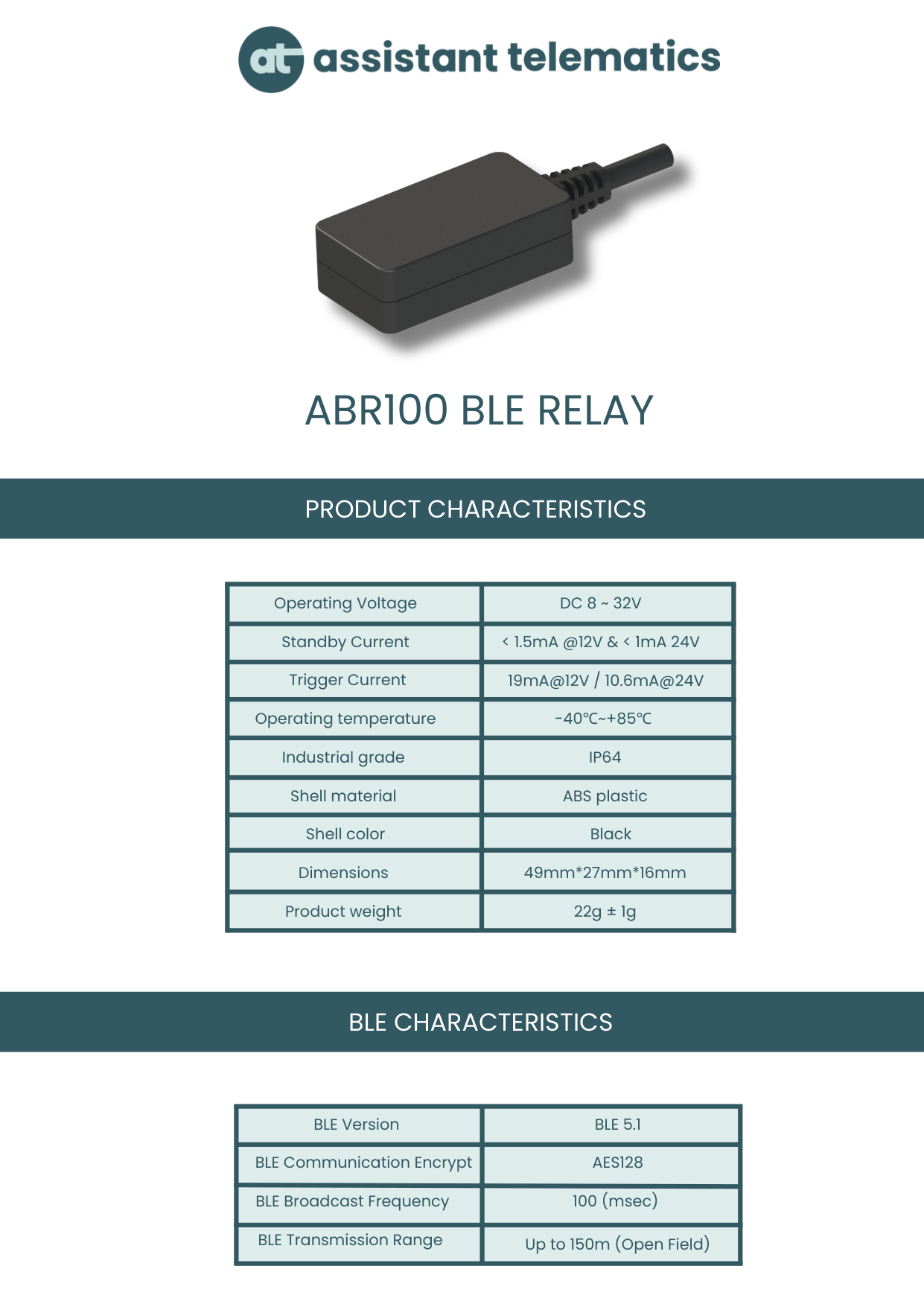

ABR100 — Datasheet
