CANBus
Reference
Parameter symbols, special vehicle type markings, and clarifications from the AVT110 / AVT111 compatibility release.
Parameter legend
Symbol in data grid
| Symbol | Meaning |
|---|---|
| Supported | |
| Supported with caveat | |
| Supported via adapter | |
| Ignition key signal | |
| J1708 interface |
Indicators
| Symbol | Meaning |
|---|---|
| Doors and trunk | |
| Driver seatbelt | |
| Handbrake | |
| Low beams | |
| High beams | |
| Front fog lights | |
| Rear fog lights | |
| Check engine | |
| Low fuel | |
| Brake pedal | |
| Reverse gear | |
| Running lights | |
| Battery | |
| Oil pressure low | |
| Clutch pedal | |
| Cruise control | |
| A/C | |
| PTO | |
| DPF burning lock | |
| Airbags | |
| Central lock | |
| Brake fluid low | |
| Engine hot | |
| ABS | |
| Hazard lights | |
| Battery charging (EV) | |
| Low AdBlue | |
| Glow plug | |
| Parking heater | |
| Oil level low | |
| Brake linings | |
| Service call | |
| TPMS | |
| Passenger seats occupancy |
Special vehicle types
| Symbol | Type |
|---|---|
| Building machine | Excavators, loaders, and similar equipment |
| Forklift | Forklift trucks |
| Harvester | Agricultural harvesters |
| Tractor | Agricultural tractors |
| Trailer | Trailers |
| Bus | Buses (on-road document) |
| Electric vehicle | Electric vehicles (on-road document) |
For electric vehicles, fuel-related parameters represent battery parameters. A tick in the "fuel level" column stands for battery charge level.
Clarifications
- Due to various equipment and target markets, some information in particular vehicle models may be unavailable.
- ID — vehicle model to be set in AVT110 / AVT111 (available only after NDA agreement).
- Vehicle model name and year refers always to model generation introduced (or face-lifted) in the given year.
- FMS setting relates to trucks and buses with a dedicated FMS interface. The number of supported parameters describes device capabilities, not the guaranteed set in every vehicle.
- J1708 / J1587 setting relates to trucks and buses without CAN-bus but with J1708/J1587 interface (especially American vehicles).
- OBD II (J1979) setting relates to the common standard obligatory for European passenger cars since 2008. It provides less data than a dedicated connection but allows simple connection to OBD connector pins 6 and 14.
Source documents are in English. Parameter and model names are kept as in the original PDF release.

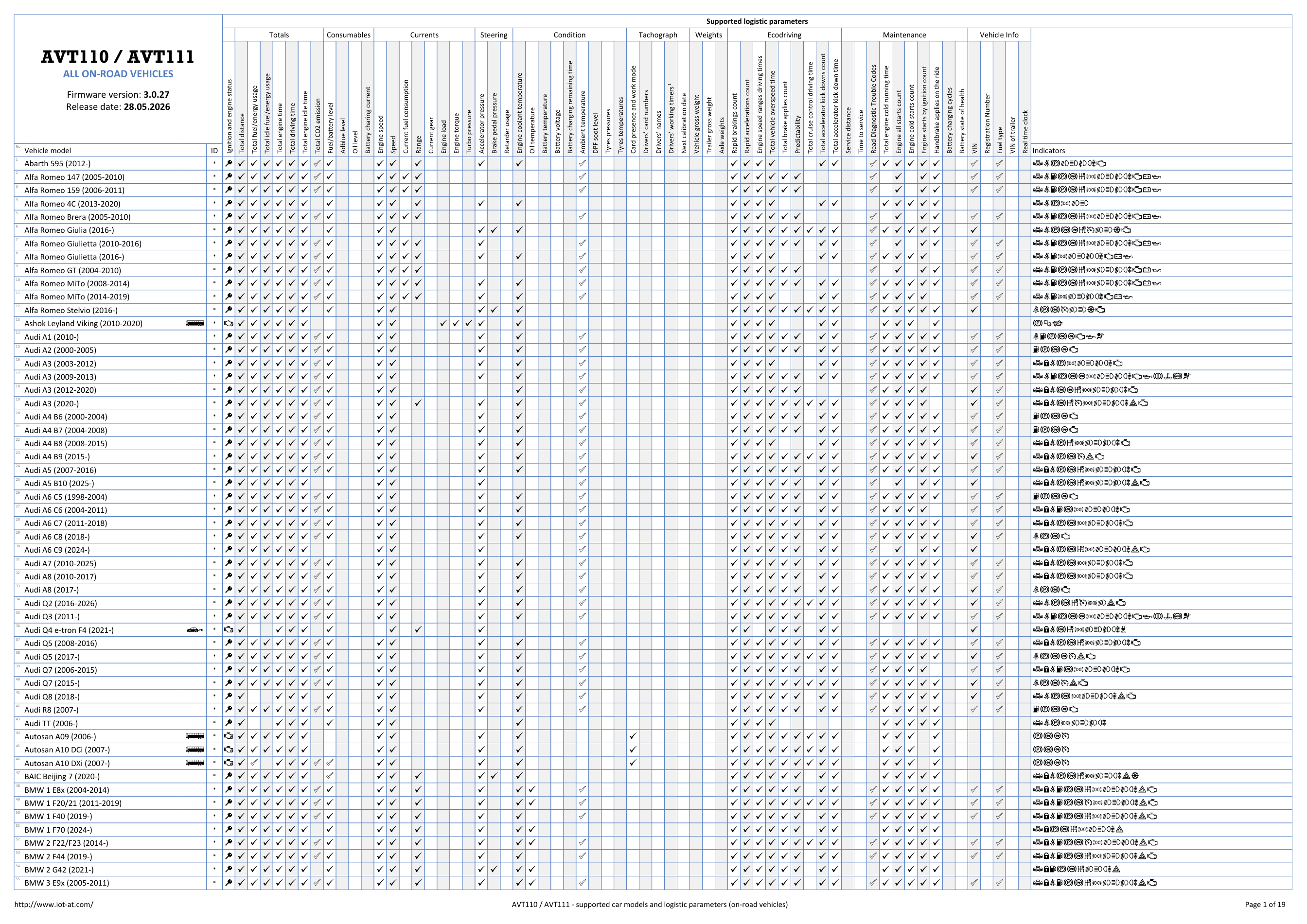

AVT110 / AVT111 — on-road vehicles
v3.0.27 · 28.05.2026 · Release
Page 1 of 19
If the preview does not load, use Download or Open in new tab.

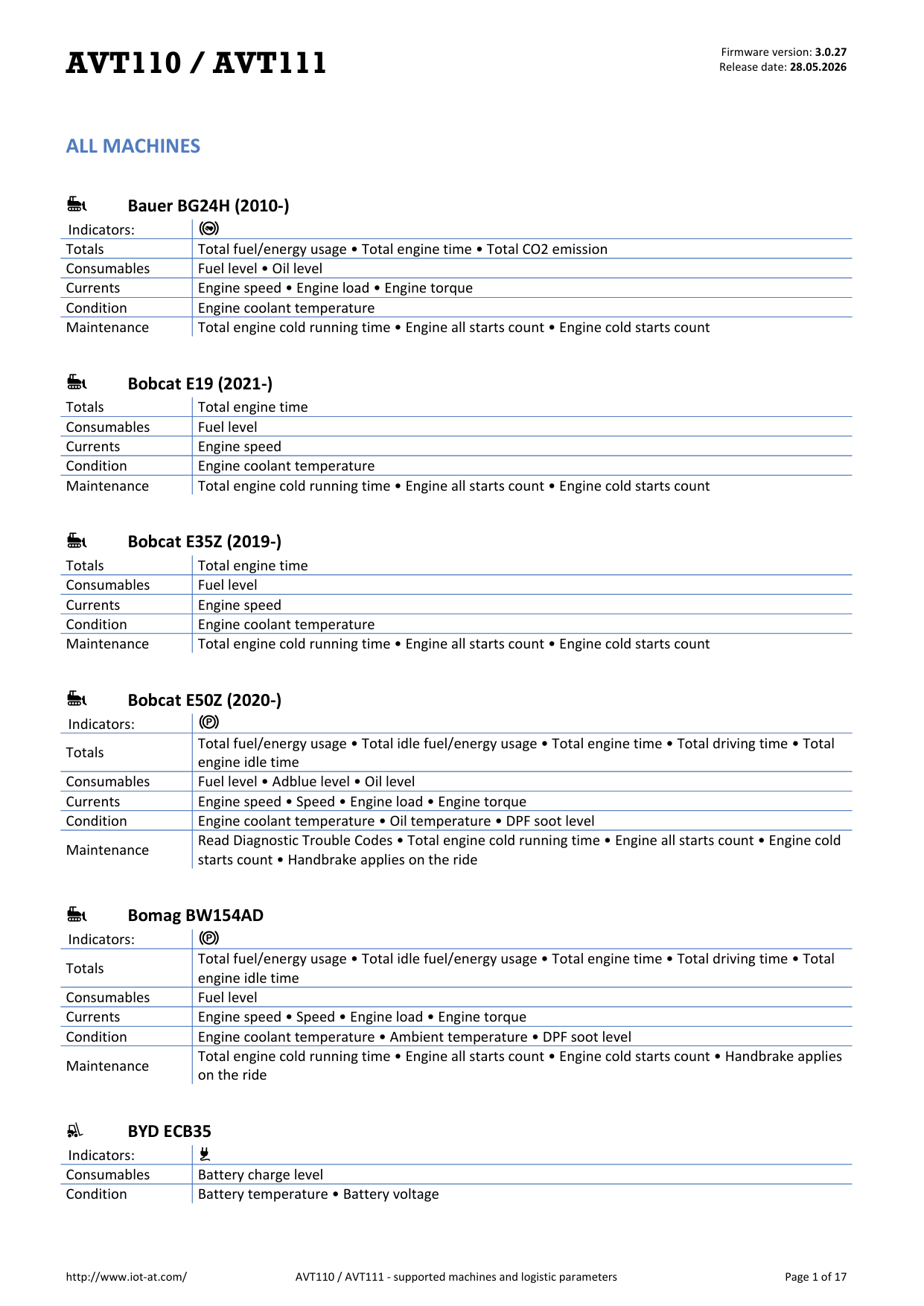

AVT110 / AVT111 — machines
v3.0.27 · 28.05.2026 · Release
Page 1 of 17
If the preview does not load, use Download or Open in new tab.
