ATL200 Datasheet — LTE Cat 1 Temperature Data Logger
Cold-chain data logger with 2500 mAh rechargeable battery
Technical datasheet for the ATL200 LTE Cat 1 temperature data logger. Review key specifications, sensor accuracy, and connectivity below, or open the full PDF.
Key highlights
- LTE Cat 1 with 2G fallback
- IP64 rating
- Rechargeable 2500 mAh battery — more than 30 days standby
- Real-time monitoring
- Flight mode via motion and barometer sensors
- High-accuracy temperature and humidity sensor
- BLE 5.3
- Optional external temperature sensor
Overview
ATL200 is an LTE Cat 1 data logger with 2G fallback, providing precise temperature and humidity monitoring for cold-chain logistics and critical storage environments.
The device features built-in internal temperature and humidity sensors, optional GNSS, and a G-sensor for motion, tilt, crash, and fall detection. Flight mode is supported via motion sensor and barometer.
Applications
- Cold chain
- Goods delivery
- Temperature monitoring
General specifications
| Parameter | Specification |
|---|---|
| Dimensions | 95 (L) × 60 (W) × 22 (H) mm |
| Network | LTE Cat 1 with 2G fallback |
| GNSS (optional) | GPS, GLONASS, BDS, Galileo, QZSS |
| BLE | Bluetooth 5.3 |
| Battery | Li-Polymer 2500 mAh rechargeable |
| Operating voltage | 3.7 V |
| Operating temperature | −20 °C to +60 °C |
| IP rating | IP64 |
| Standby time | More than 30 days — G-sensor, light, temperature/humidity, and barometer sensors on; GNSS off; store every 5 min, report every 20 min |
Network
| Parameter | Specification |
|---|---|
| Data transmission | EDGE: (DL) 296 kbps / (UL) 236.8 kbps; GPRS: (DL) 107 kbps / (UL) 85.6 kbps |
| 2G bands | EGPRS 850 / 900 / 1800 / 1900 MHz |
| LTE Cat M1 | FDD: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B27 / B28 / B66 / B85 |
| LTE Cat NB2 | FDD: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B28 / B66 / B71 / B85 |
Sensor accuracy
| Sensor | Accuracy |
|---|---|
| Light sensor | ±10% |
| Temperature sensor | 0 °C to 60 °C: ±0.4 °C; < 0 °C: ±1 °C |
| Humidity sensor | ±5% |
| Barometer sensor | ±0.2 kPa |
Features
| Feature | Description |
|---|---|
| Cell | LBS |
| Temperature & humidity sensor | Temperature and humidity data store and report |
| Light sensor | Light detection |
| Motion sensor | Motion / tilt / crash / fall detection |
| Flight mode | Two-way flight mode detection via motion sensor and barometer |
| Transmit protocol | TCP / UDP |
| Regular timing report | Location, T/H value, event, G-sensor value, battery level, CSQ, light, network type |
| Battery | Low battery alarm |
| Remote control | FOTA and OTA management |
Interfaces
| Interface | Details |
|---|---|
| LED indicators | LTE indicator LED; power indicator LED; GNSS indicator LED |
| Type-C | Firmware upgrade; supports external 1-Wire temperature sensors |
Certification

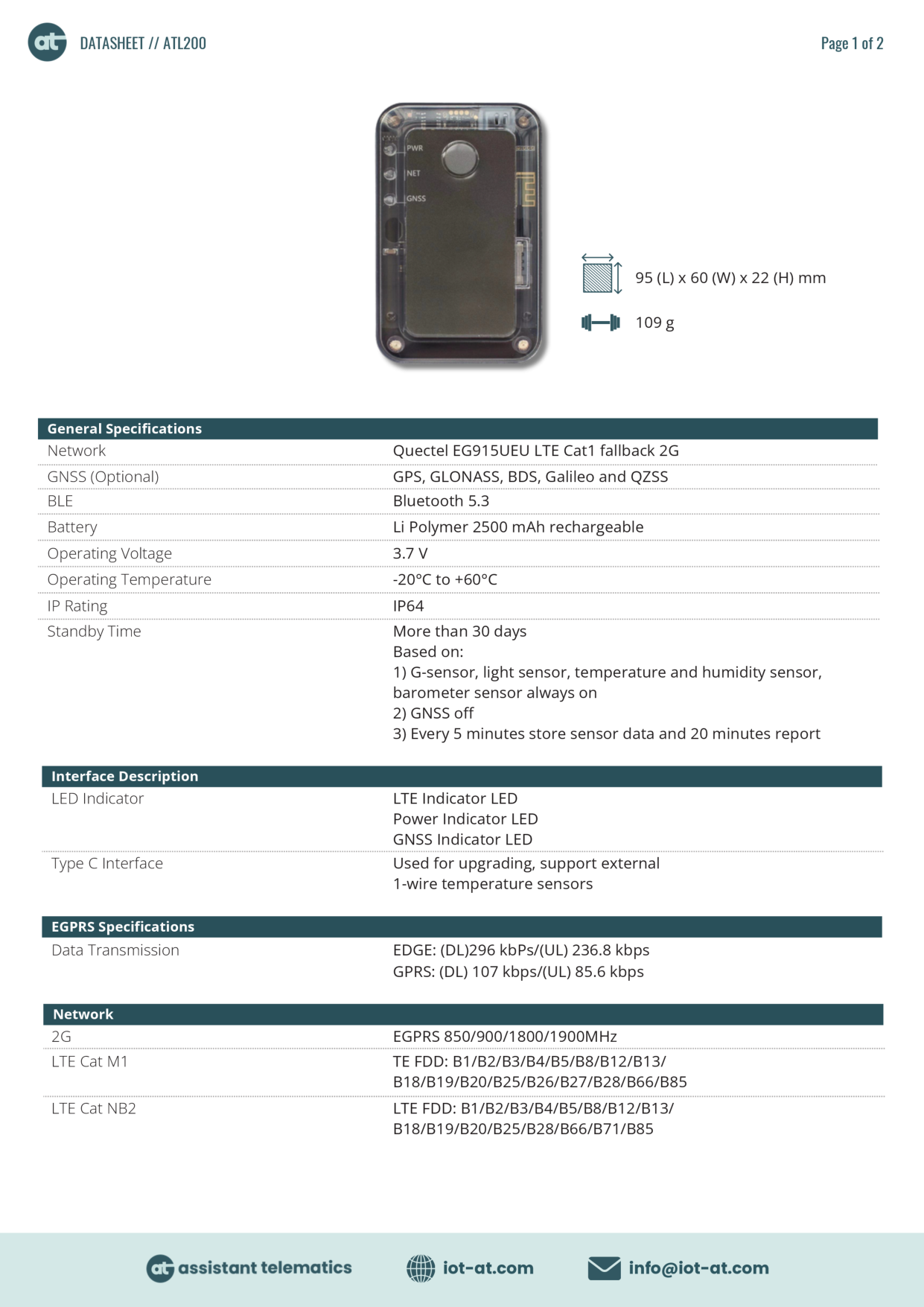

ATL200 — Datasheet
v1.0 · 2025 · Release
