ABT110 Datasheet — 10000 mAh Battery Powered Tracker
Standalone tracker for asset tracking and cold chain
Technical datasheet for the ABT110 10000 mAh rechargeable battery-powered tracker. Review key specifications, battery life, and interfaces below, or open the full PDF.
Key highlights
- LTE Cat 1 with fallback to 2G
- Waterproof IP67
- 10000 mAh rechargeable Li-Polymer battery
- Ultra low power GNSS
- G-sensor motion detection
- Front and rear light sensors
- Optional RF433 transmission
- BLE 5.3
Overview
ABT110 is a powerful tracking device built for demanding applications like asset tracking, vehicle recovery, and cold chain logistics. It features intelligent motion detection with a built-in G-sensor, long-lasting performance powered by a high-capacity rechargeable battery, and environmental awareness through light sensing.
With a rugged, weatherproof housing and magnetic mounting, the ABT110 is ready for harsh conditions and extended deployments.
Applications
- Asset tracking
- Vehicle recovery
- Cold chain logistics
- Equipment monitoring
Physical & environment
| Parameter | Specification |
|---|---|
| Dimensions | 111.5 (L) × 67.9 (W) × 31.5 (H) mm |
| Weight | 161 g |
| IP rating | IP67 |
| Operating temperature | −30 °C to +60 °C |
| Max charge current | 3 A |
Network
| Parameter | Specification |
|---|---|
| Module | Quectel EG915UEU LTE Cat 1 fallback 2G |
| 4G bands | B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| 2G bands | B2 / B3 / B5 / B8 |
GNSS
| Parameter | Specification |
|---|---|
| Receiver | Unicore UC6228 |
| Constellations | GPS, BDS, GLONASS, Galileo, QZSS, SBAS |
| Horizontal accuracy | < 2.0 m |
| Hot start | < 1 s |
| Cold start | < 28 s |
| Tracking sensitivity | −167 dBm |
| Data update rate | 1 Hz |
| GNSS power consumption | Tracking 8 mW; Acquisition 18 mW |
BLE
| Component | Specification |
|---|---|
| Bluetooth | Goodix GR5526 BLE — Low-power Bluetooth 5.3 |
Power & battery
| Report interval | Battery life |
|---|---|
| 10 seconds | 10 days (240 hours) |
| 1 minute | 14.8 days (355 hours) |
| 5 minutes | 16.33 days (440 hours) |
| 10 minutes | 67.5 days (1619 hours) |
| 30 minutes | 102 days (2467 hours) |
Interfaces & other
| Interface | Details |
|---|---|
| LED indication | Network LED; GNSS LED; 4 battery power LEDs |
| Port | Type-C |
| Button | Power on / power off |
| Light sensors | Front light; rear light |
| Temperature | Integrated temperature sensor |
| RF433 | Optional RF433 signal transmission |
| SIM | 3FF, eSIM compatible |
| Memory | 4 MB |
| Remote control | FOTA and OTA management |
Certification

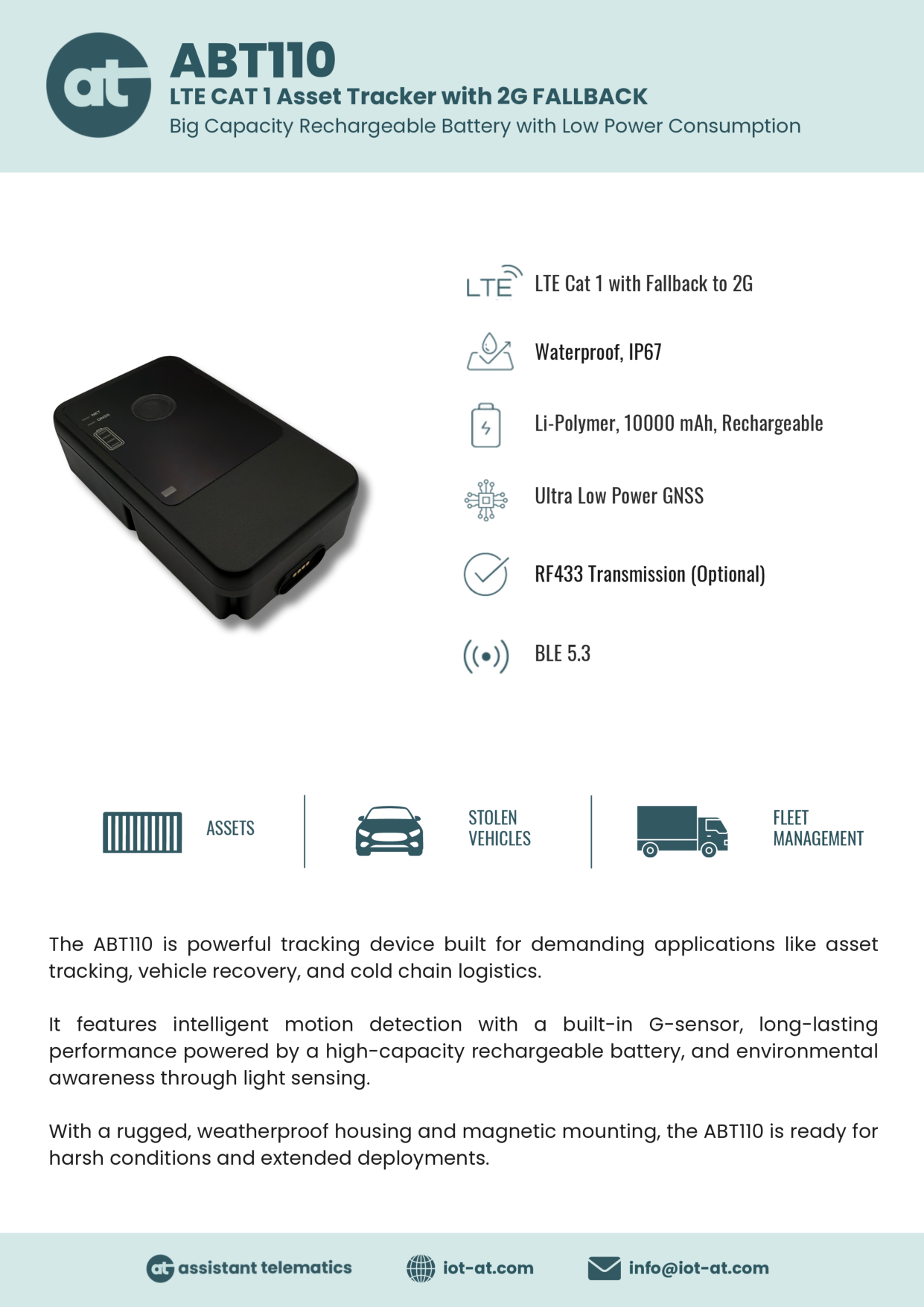

ABT110 — Datasheet
v1.0 · 2025 · Release
Page 1 of 2
