ATL100 Datasheet — Advanced Temperature Data Logger
LTE Cat M1/NB2 logger with high-accuracy T/H sensing
Technical datasheet for the ATL100 advanced temperature data logger. Review key specifications, sensor accuracy, and connectivity below, or open the full PDF.
Key highlights
- LTE Cat M1 / NB2 with 2G fallback
- IP64 rating
- Rechargeable 1800 mAh battery — more than 30 days standby
- Real-time monitoring
- Flight mode
- Temperature alarm
- BLE 5.1
Overview
ATL100 is an Assistant Telematics temperature data logger with a rechargeable battery. The device features built-in internal temperature and humidity sensors, GNSS, and a G-sensor for tilt alarm, crash alarm, and flight mode.
Additionally, it supports an external 1-Wire temperature sensor for more precise temperature monitoring.
Applications
- Cold chain
- Goods delivery
- Temperature monitoring
General specifications
| Parameter | Specification |
|---|---|
| Dimensions | 95 (L) × 60 (W) × 22 (H) mm |
| Weight | 109 g |
| Network | Cat M1, Cat NB2, EGPRS |
| GNSS (optional) | GPS, GLONASS, BDS, Galileo, QZSS |
| BLE | Bluetooth 5.1 |
| Battery | Li-Polymer 1800 mAh rechargeable |
| Operating voltage | 3.7 V |
| Operating temperature | −20 °C to +60 °C |
| IP rating | IP64 |
| Standby time | More than 30 days — G-sensor, light, temperature/humidity, and barometer sensors on; GNSS off; store every 5 min, report every 20 min |
Network
| Parameter | Specification |
|---|---|
| Data transmission | EDGE: (DL) 296 kbps / (UL) 236.8 kbps; GPRS: (DL) 107 kbps / (UL) 85.6 kbps |
| 2G bands | EGPRS 850 / 900 / 1800 / 1900 MHz |
| LTE Cat M1 | FDD: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B27 / B28 / B66 / B85 |
| LTE Cat NB2 | FDD: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B28 / B66 / B71 / B85 |
Interfaces
| Interface | Details |
|---|---|
| LED indicators | LTE indicator LED; power indicator LED; GNSS indicator LED |
| Type-C | Firmware upgrade; supports external 1-Wire temperature sensors |
Sensor accuracy
| Sensor | Accuracy |
|---|---|
| Light sensor | ±10% |
| Temperature sensor | 0 °C to 60 °C: ±0.4 °C; < 0 °C: ±1 °C |
| Humidity sensor | ±5% |
| Barometer sensor | ±0.2 kPa |
Features
| Feature | Description |
|---|---|
| Cell | LBS |
| Temperature & humidity sensor | Temperature and humidity data store and report |
| Light sensor | Light detection |
| Motion sensor | Motion / tilt / crash / fall detection |
| Flight mode | Two-way flight mode detection via motion sensor and barometer |
| Transmit protocol | TCP / UDP |
| Regular timing report | Location, T/H value, event, G-sensor value, battery level, CSQ, light, network type |
| Battery | Low battery alarm |
| Remote control | TOTA and OTA management |
Certification
- CE
- EN 12830:2018
- EN 13486:2023

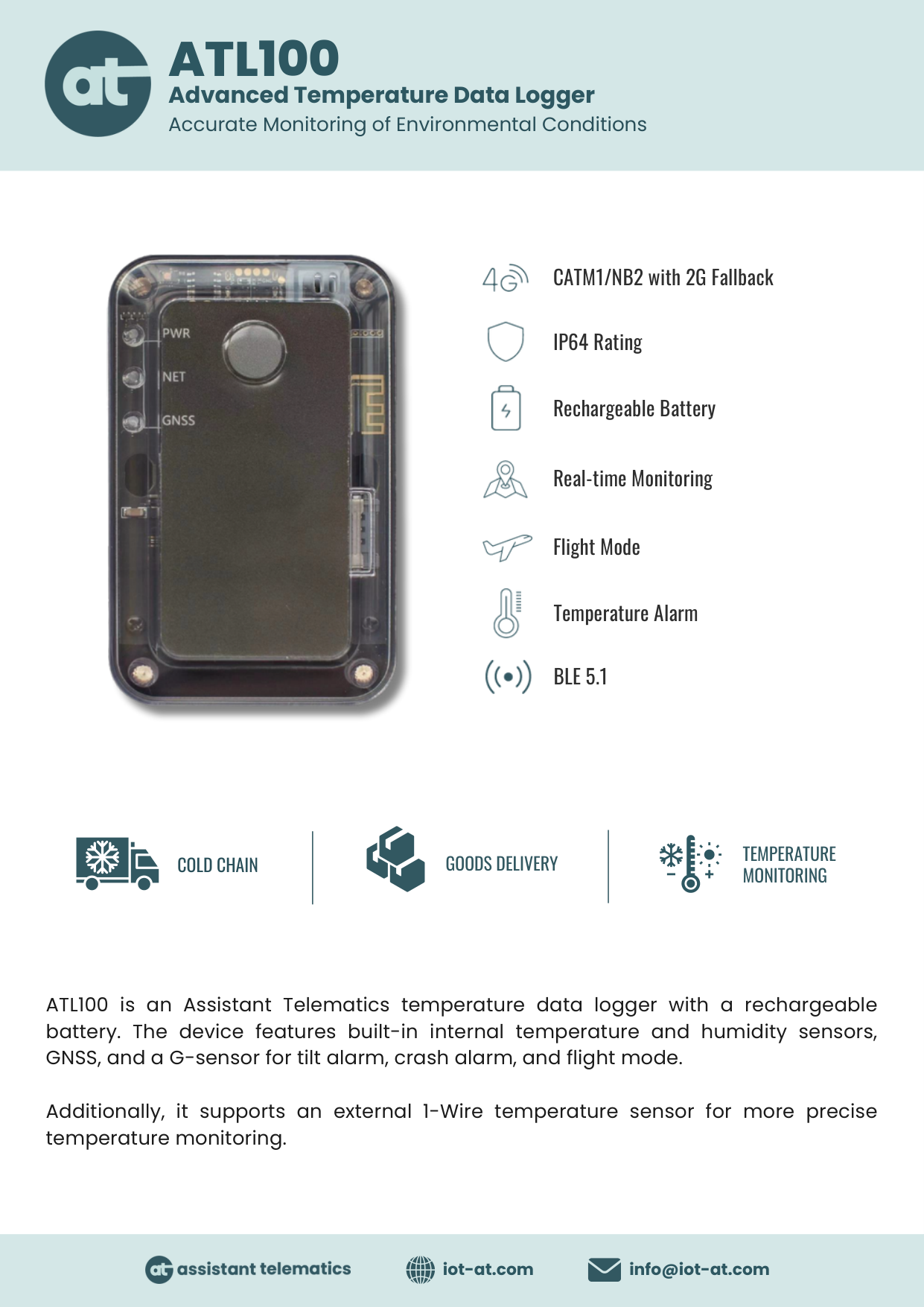

ATL100 — Datasheet
