AVT50 User Manual
Revision 1.01 — Dec 25, 2024 — Initial release
This manual covers installation, electrical interfaces, and operation of the AVT50 GNSS tracker. Use the structured sections below for quick reference, or open the full PDF for the complete document.
Introduction
The AVT50 is a compact GNSS tracker designed for a wide variety of vehicle tracking applications. It has multiple I/O interfaces that can be used for monitoring or controlling external devices.
Its built-in GNSS receiver has superior sensitivity and fast time to first fix. Seven-band LTE-FDD in Europe and GSM/GPRS 850/900/1800/1900 MHz allow the AVT50's location to be monitored in real time or periodically tracked by a backend server and mobile devices.
The built-in 6-axis accelerometer and gyroscope support driving behaviour monitoring and motion detection.
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 97 mm × 48 mm × 18 mm |
| Network | EGPRS: GSM850/GSM900/DCS1800/PCS1900; LTE Cat-1: B1, B3, B5, B7, B8, B20, B28 |
| GNSS (optional) | GPS, GLONASS, BDS, GALILEO |
| Bluetooth | BLE 5.3 |
| Sensors & interfaces | G-Sensor (6-axis accelerometer and gyroscope); ignition wire; negative digital / analog input multiplexing; open-drain digital output |
| Battery | 3.7 V 150 mAh rechargeable Li-polymer |
| IP rating | IP67 |
| Power supply | 7 – 90 V |
| Operating temperature | −20 °C to +60 °C |
| LED indicators | Power, NET (CELL), GNSS |
| Debug port | USB Type-C |
Interface definition (5 PIN)
AVT50 has a 5 PIN interface connector for power, ignition, multiplexed input, and digital output:
| PIN | Defined | Color | Comment |
|---|---|---|---|
| 1 | VIN | Red | External DC power input, 7 – 90 V |
| 2 | GND | Black | Power and digital ground |
| 3 | IGN | White | Ignition input, positive trigger |
| 4 | DIN/AIN | Orange | Analog input and negative trigger input multiplexing |
| 5 | OUT1 | Brown | Digital output, open drain, 150 mA max, with latch circuit |
Install a SIM card
- Open the case and ensure the unit is not powered.
- Slide the holder right to open the SIM card holder.
- Insert the SIM card with the gold contact area facing down. Align the cut mark.
- Close the SIM card holder and the case.
Internal backup battery
AVT50 has an internal backup 150 mAh Li-ion battery for continued operation when external power is unavailable.
Power connection
PWR (PIN1) / GND (PIN2) are the power input pins. The input voltage range is 7 V to 90 V. The device is designed for common 12 V / 24 V / 48 V / 64 V / 72 V vehicle systems without external transformers.
Digital outputs
AVT50 has one digital output (OUT1). The output is open drain type with a maximum drain current of 150 mA and a built-in over-current PTC resettable fuse.
Electrical characteristics of digital outputs
| Logical status | Electrical characteristics |
|---|---|
| Enable | < 1.5 V @ 150 mA |
| Disable | Open drain |
Terminal status LED
| LED | Device status | LED status |
|---|---|---|
| GNSS | GNSS chip is powered off | OFF |
| GNSS | No data or data format error | High speed flashing |
| GNSS | Searching GNSS information | Medium speed flashing |
| GNSS | GNSS information acquired | ON |
| CELL | Searching network | Fast flashing |
| CELL | Registered on network | Slow flashing |
| PWR | No external power, battery < 3.5 V | OFF |
| PWR | No external power, battery < 3.7 V | Slow flashing |
| PWR | External power connected, battery charging | Fast flashing |
| PWR | External power connected, battery fully charged | ON |
G-sensor direction
AVT50 has an internal 6-axis accelerometer and gyroscope supporting driving behaviour monitoring, crash detection, and motion detection. Mount the device according to the motion sensor orientation shown in the full manual.
Product parts list
- AVT50 locator
- 3M backing sticker
- Case screws (4 pcs)

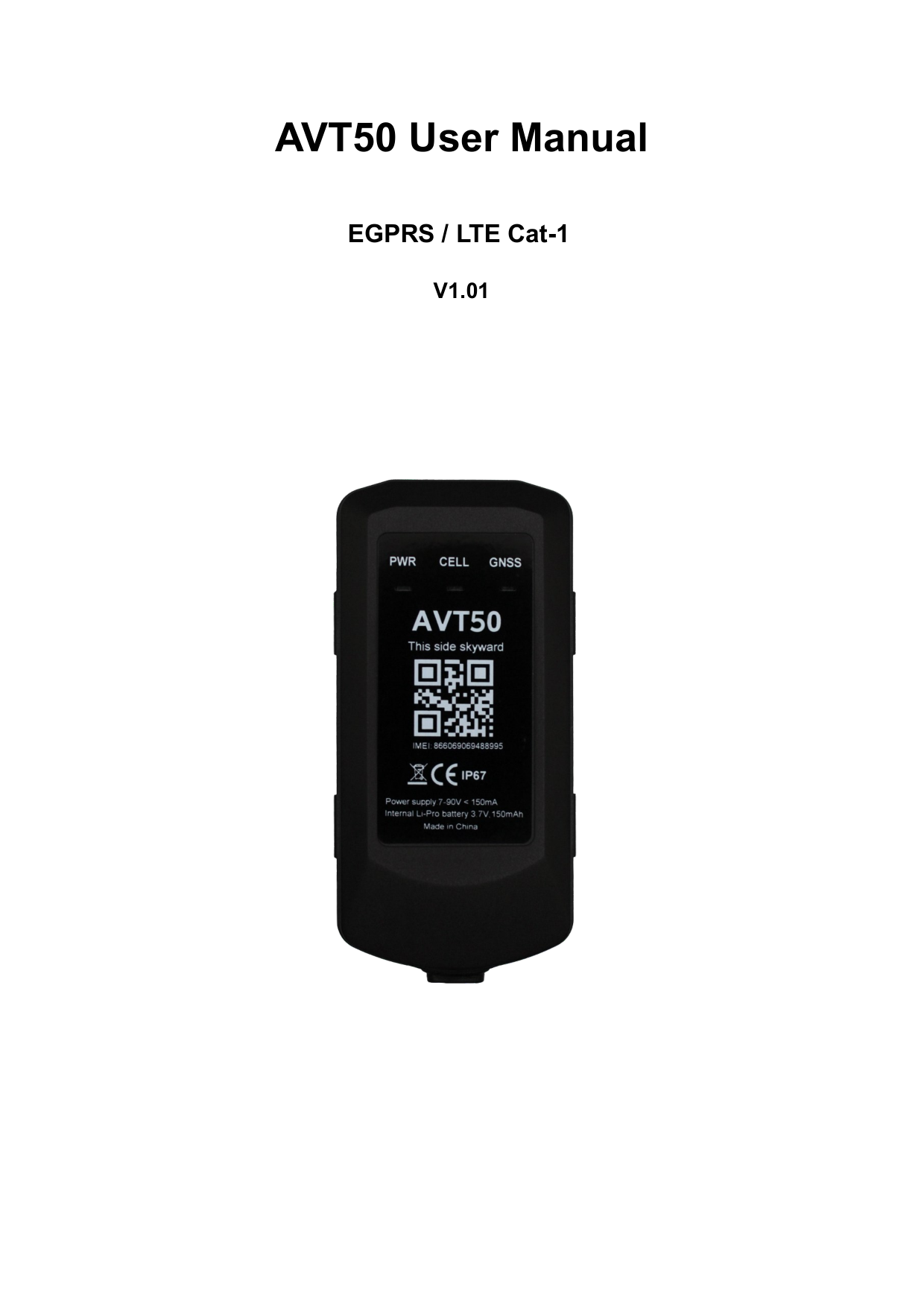

AVT50 — User manual
