AVT50 Datasheet — LTE Cat 1 Compact Vehicle Tracker
Compact waterproof tracker with multiple I/O
Technical datasheet for the AVT50 LTE Cat 1 compact vehicle tracker. Review key specifications, I/O, and operating parameters below, or open the full PDF.
Key highlights
- LTE Cat 1 with fallback to 2G
- Waterproof IP67
- Operating voltage 7–90 V DC
- 6-axis accelerometer
- Li-Polymer 150 mAh internal battery
- BLE 5.3
- Five-wire connectivity with digital I/O
Overview
AVT50 is a waterproof Assistant Telematics device with five-wire connectivity, designed for light vehicles, motorcycles, scooters, and e-bikes. The tracker supports a wide power supply range of 7–90 V.
The device includes one positive input (ignition), one negative or analog input (multiplexing), and one output. It features a built-in 150 mAh internal battery, power-saving mode when RF and GNSS are disabled, and integrated BLE 5.3 for accessories such as temperature sensors, BLE relays, and beacons.
Applications
- Light vehicles
- Motorcycles
- Scooters
Physical & environment
| Parameter | Specification |
|---|---|
| Dimensions | 100 (L) × 45 (W) × 18 (H) mm |
| Weight | 101 g |
| IP rating | IP67 |
| Operating temperature | −30 °C to +75 °C |
Network
| Parameter | Specification |
|---|---|
| Module | Quectel EG915UEU LTE Cat 1 fallback 2G |
| 4G bands | B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| 2G bands | B2 / B3 / B5 / B8 |
GNSS
| Parameter | Specification |
|---|---|
| Receiver | Unicore C6226 |
| Constellations | GPS, BDS, GLONASS, Galileo, QZSS, SBAS |
| Horizontal accuracy | < 2.0 m |
| Hot start | < 1 s |
| Cold start | < 28 s |
| Tracking sensitivity | −160 dBm |
| Data update rate | 1 Hz |
BLE & accelerometer
| Component | Specification |
|---|---|
| Bluetooth | Goodix GR5526 BLE — Low-power Bluetooth 5.3 |
| Accelerometer | ICM-42607-C — 6-axis accelerometer |
Power & battery
| Parameter | Specification |
|---|---|
| Input voltage range | 7–90 V |
| Internal battery | Li-Polymer 150 mAh |
| Standby (report every 10 min) | Approx. 24 hours (1 day) |
| Standby (report every 1 hour) | Approx. 72 hours (3 days) |
| Standby (report every 12 hours) | Approx. 240 hours (10 days) |
Interfaces & other
| Interface | Details |
|---|---|
| Digital inputs | 1 ignition input; 1 digital negative / analog input multiplexing |
| Digital output | 1 |
| USB | Type-C — power and configuration |
| SIM | 4FF, eSIM compatible |
| Memory | 4 MB |
| LED indication | Power, Network, GNSS, CAN |
Certification

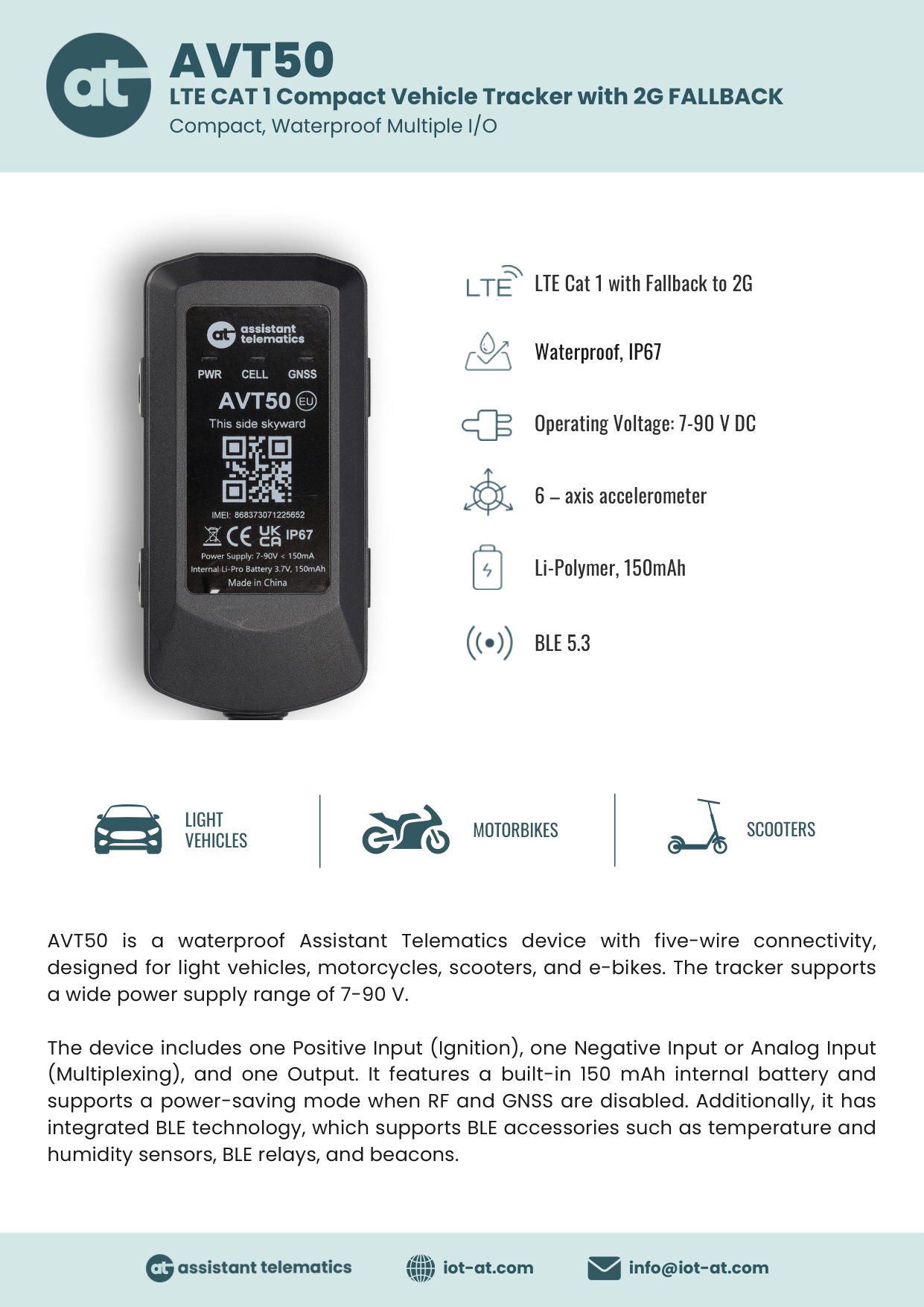

AVT50 — Datasheet
